#21874 - 06/11/10 04:28 AM help me to find chip name on LeoII
oonkel Offline
junior


Registered: 10/13/09
Posts: 32

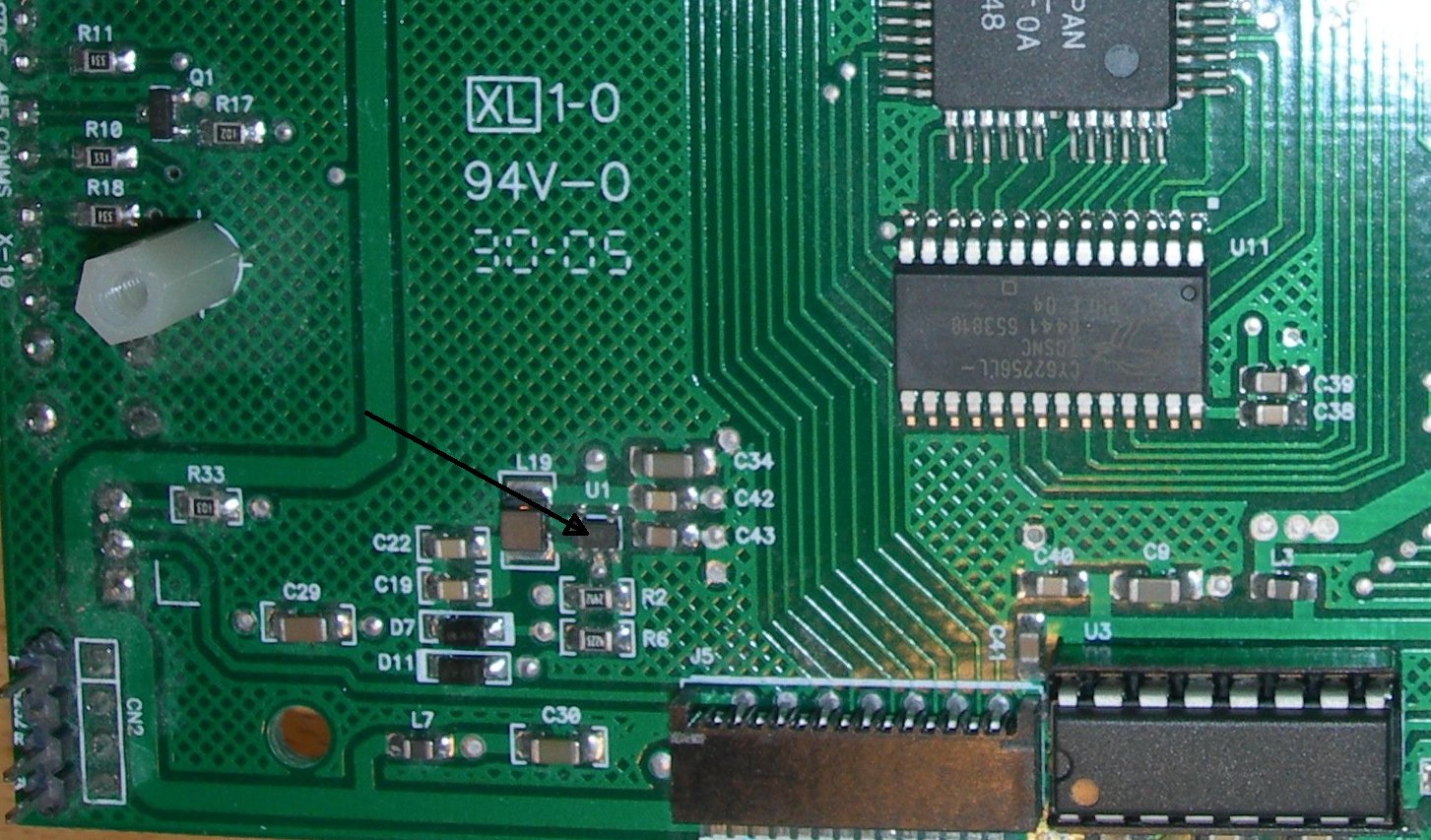

A very small 5- feet chip, U1 may be , I think it make -22V from +5 seems to be bad. Pleas can You tell me the name of the chip

http://ydom.ru/t/leo_01.jpg

Top
#21875 - 06/12/10 07:13 PM Re: help me to find chip name on LeoII [Re: oonkel]
Guy Lavoie Administrator Offline
Beyond All Hope
*****

Registered: 12/21/02
Posts: 6401
Loc: Montreal, QC, Canada
A 5 pin chip? There is not really such a thing. I don't think you're describing it correctly... Is the picture supposed to be showing it? If so, which part exactly?
_________________________
"If you don't know what you're doing, do it neatly..."

Top
#21876 - 06/13/10 09:35 PM Re: help me to find chip name on LeoII [Re: Guy Lavoie]
oonkel Offline
junior


Registered: 10/13/09
Posts: 32
it's look like TI TPS61040/041, but I am not sure. I can't see no reasonable label on the chip.
photo is here

http://ydom.ru/t/leo_01.jpg

Top
#21878 - 06/14/10 12:25 PM Re: help me to find chip name on LeoII [Re: oonkel]
oonkel Offline
junior


Registered: 10/13/09
Posts: 32
Is marked with black arrow
Top
#21880 - 06/14/10 06:58 PM Re: help me to find chip name on LeoII [Re: oonkel]
Guy Lavoie Administrator Offline
Beyond All Hope
*****

Registered: 12/21/02
Posts: 6401
Loc: Montreal, QC, Canada
The part number you have posted appears to be correct. This chip would probably be used to drive the backlighting for the screen.
_________________________
"If you don't know what you're doing, do it neatly..."

Top
#21884 - 06/15/10 12:43 AM Re: help me to find chip name on LeoII [Re: Guy Lavoie]
oonkel Offline
junior


Registered: 10/13/09
Posts: 32
thanks Guy.
